Intro#

In the first part I covered the allocator building blocks: arenas, chunks, metadata, and bins. In this post I want to connect those pieces into the actual allocation and free paths you will see while debugging a process or reading glibc source.

The most important thing to keep in mind is that glibc does not have one single “malloc path” or one single “free list”. The path depends on request size, tcache state, arena state, and the exact glibc version.

Size Accounting Before Any Allocation Path#

When you call malloc(0x10), glibc is not simply looking for a raw 16-byte region. It first converts your request into an internal chunk size using alignment and minimum-size rules.

In current glibc source this happens through request2size(req):

#define request2size(req)                                         \
  (((req) + SIZE_SZ + MALLOC_ALIGN_MASK < MINSIZE)  ?             \
   MINSIZE :                                                      \
   ((req) + SIZE_SZ + MALLOC_ALIGN_MASK) & ~MALLOC_ALIGN_MASK)

On a typical 64-bit build:

  • requested size: 0x10
  • internal chunk size after request2size: 0x20

That is the number you should track while reasoning about chunk placement. It is more accurate than saying “glibc adds 16 bytes of metadata and then 6 bytes of padding”. The allocator uses size macros, not a one-line textbook formula.

Allocated chunk example

Diagram of an allocated chunk showing the size field with its PREV_INUSE bit and the user-data area that the allocator hands a pointer to

After the allocator chooses a chunk, it returns a pointer to the user-data area inside that chunk.

Where Heap Memory Comes From#

Before talking about allocation paths, we need to answer a simpler question: where does the allocator get memory in the first place?

glibc can obtain memory from the kernel in two major ways:

  • by extending the traditional heap region with brk/sbrk
  • by creating separate mappings with mmap

For the main arena, glibc often grows heap-backed memory with brk/sbrk. Large allocations may be satisfied with mmap, and non-main arenas can also rely on mmap-backed heaps depending on the allocator path and platform behavior.

So it is better to think in terms of arena-managed regions rather than one single ever-growing process heap.

Main Allocation Paths#

At a high level, an allocation request can be satisfied in one of these ways:

  1. reuse a cached or already-freed chunk
  2. split the top chunk in the current arena
  3. grow an arena by asking the kernel for more memory
  4. allocate a large block directly with mmap

The exact order is influenced by size and cache state. In modern glibc, tcache often gets checked before older arena bin paths for eligible sizes.

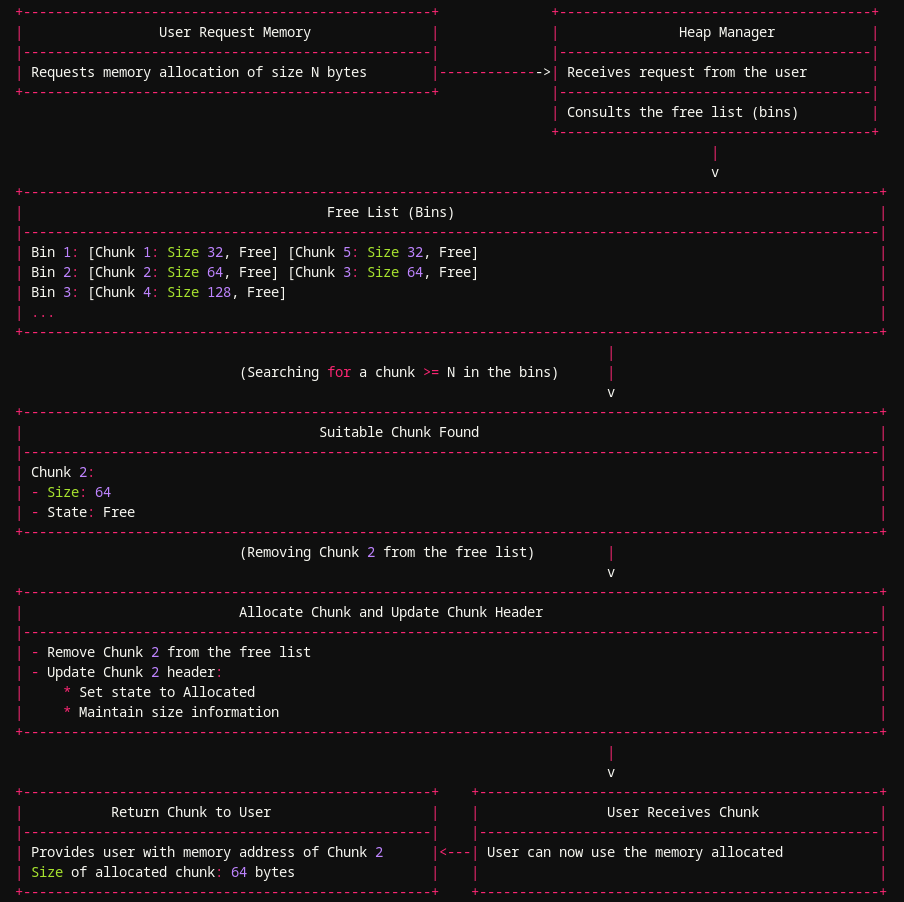

Allocation From Cached or Freed Chunks#

glibc keeps several structures for reusable memory:

  • per-thread tcache entries
  • fastbins
  • the unsorted bin
  • small bins
  • large bins

So “allocation from free lists” is real, but it is not one global free list. A request may be satisfied from tcache first, then from arena bins, and only fall back to the top chunk or kernel growth if no suitable free chunk is found.

When a suitable freed chunk is reused, glibc marks it in use again and returns its user-data pointer to the program.

Diagram of a freed chunk being taken back out of tcache or a bin, marked in use again with its user-data pointer returned to the program

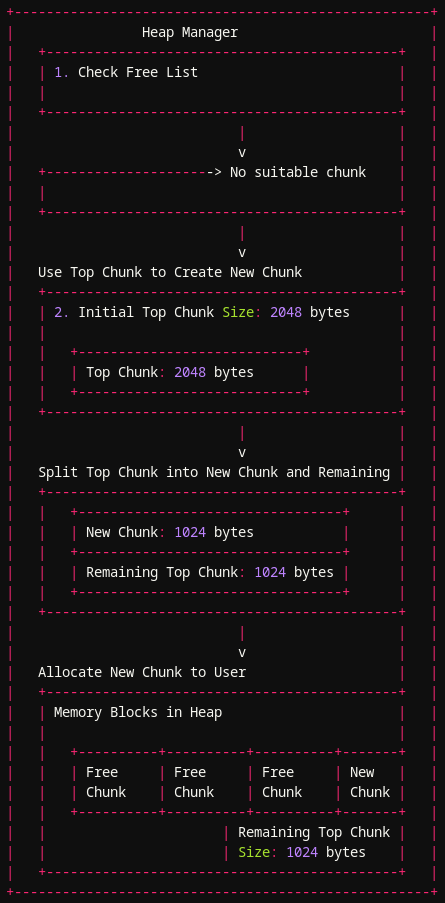

Allocation From the Top Chunk#

The top chunk is the remainder chunk at the high end of an arena. If glibc cannot satisfy a request from cached or binned chunks, it can split the top chunk and hand part of it to the caller.

One important correction here: there is not one top chunk for the entire process. The useful mental model is one top chunk per arena.

Diagram of the top chunk at the high end of an arena being split, with the unused remainder left behind as the new top chunk

Growing an Arena#

If the current arena does not have enough space left in its top chunk, glibc has to obtain more memory from the kernel.

For the main arena this commonly means extending the heap with brk/sbrk. For other cases glibc may use additional mappings. The glibc manual also notes that arena growth and retention are affected by tunables such as glibc.malloc.top_pad.

Heap layout before requesting more memory

Heap layout before arena growth, with the top chunk nearly exhausted and the program break at the end of the mapping

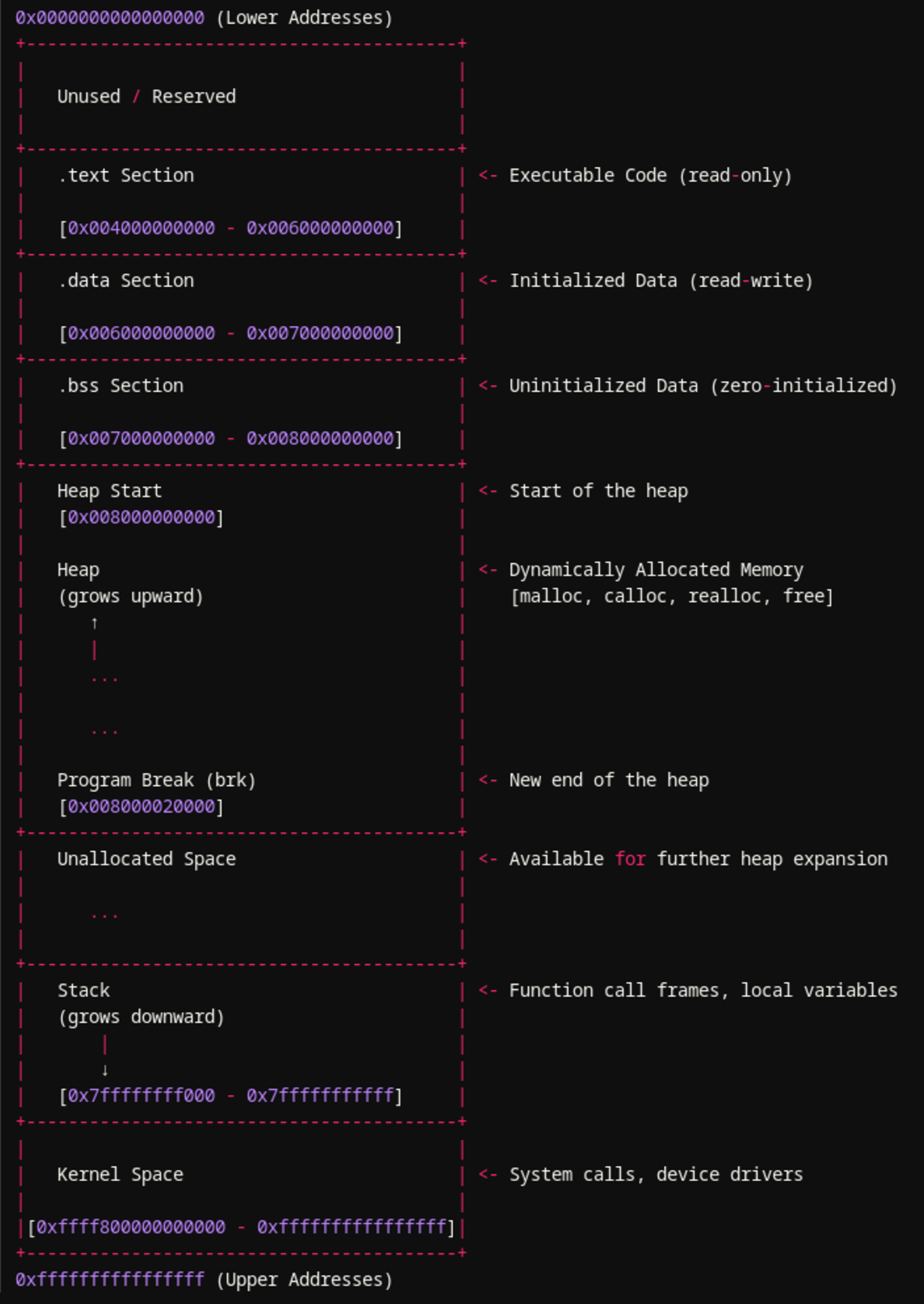

Heap layout after requesting more memory

Heap layout after the arena grows via brk, with the program break pushed further out and a larger top chunk

Using mmap for Large Requests#

Very large allocations are often handled with mmap instead of the normal heap growth path. The official glibc manual says the default mmap threshold is 131072 bytes unless tuned, and smaller requests may still end up on an mmap path depending on allocator state.

For mmapped chunks:

  • the IS_MMAPPED bit is set in the size field
  • the region is not managed like a normal arena chunk
  • free can return the mapping back to the system with munmap

Freeing an Allocated Chunk#

Freeing is also more nuanced than “mark as free and add to a global free list”.

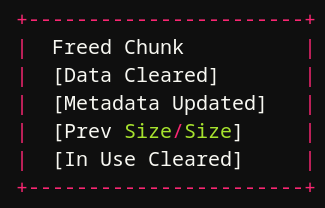

1. Initial Checks and Metadata Updates#

When free(ptr) is called, glibc first validates the chunk enough to make sure the request is sane for the active allocator path. The exact checks differ by path and version.

For normal arena chunks, glibc updates chunk state so the allocator can later treat the region as free. A key detail is that the in-use state is tracked through the neighboring chunk metadata, especially the PREV_INUSE bit. That is more accurate than saying “free just clears an allocated bit in the current chunk”.

Also, free does not normally zero memory. If you see freed chunks getting overwritten during debugging, that usually comes from debugging features such as glibc.malloc.perturb, not from the default free path.

Diagram of free() updating chunk metadata and clearing the PREV_INUSE bit on the next chunk so the region can later be found as free

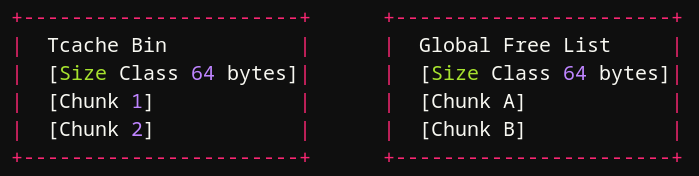

2. Placement Into the Appropriate Structure#

After the initial metadata work, the chunk may go to:

  • a tcache bin, if its size class is cached and the per-thread cache is not full
  • a fastbin, if it is in a fastbin-eligible size class
  • the unsorted bin, before later redistribution
  • small bins or large bins, depending on size and allocator flow

This is why describing the result as a “global free list” is misleading. glibc uses multiple allocator-managed structures, many of them per arena and some of them per thread.

Flow chart routing a newly freed chunk to a tcache bin, a fastbin, the unsorted bin, or a small or large bin depending on its size class

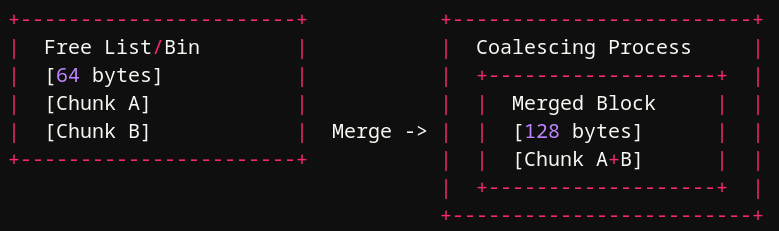

3. Consolidation and Reuse#

If adjacent free chunks can be merged, glibc may consolidate them into a larger chunk. That reduces fragmentation and improves the chances of satisfying future requests cleanly.

One nuance that matters for exploitation: not every free is consolidated immediately. For example, fastbin behavior intentionally delays some consolidation work. So when you analyze a bug, the relevant question is not just “was this chunk freed?” but also “which free path did it take?”

Diagram of two adjacent free chunks being consolidated into a single larger free chunk to reduce fragmentation

Why This Matters for Exploitation#

Two bugs that both say “heap overflow” can lead to completely different behavior depending on:

  • the internal chunk size after request2size
  • whether the chunk hits tcache first
  • whether consolidation happens immediately
  • whether the chunk belongs to the main arena or a non-main arena

That is why real heap exploitation usually starts by answering allocator questions before trying random corruption primitives.
